JAPSPEED Nissan 200SX S14 / S14A / S15 SR20DET – MVT Front Mount Intercooler Kit
¥77,338.87
JAPSPEED
JAPSPEED Nissan 200SX S14 / S14A / S15 SR20DET (93-02) – Front Mount Intercooler Kit
JAPSPEED
¥69,197.72

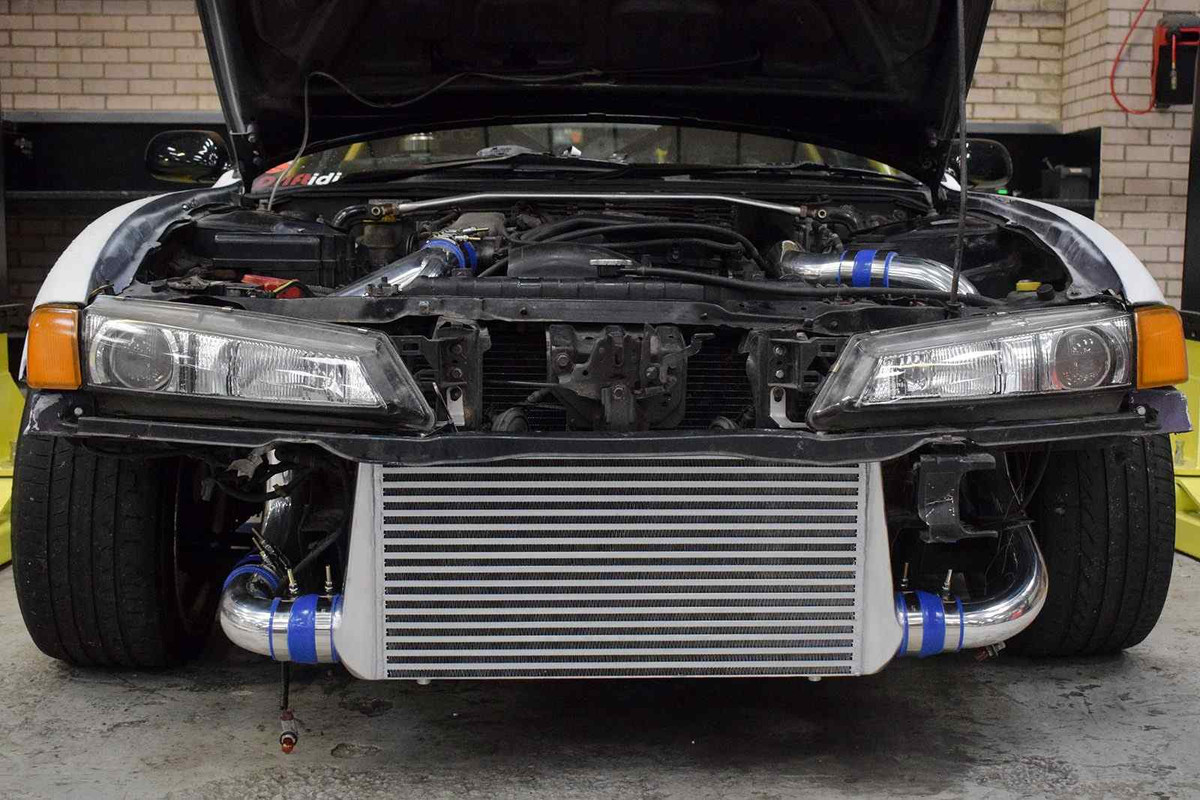

Fitting a front mount intercooler is an excellent way of safely increasing your engine’s power output. This is as a result of reducing the temperature of the air entering the engine, creating a denser charge. The standard Nissan intercooler is a small unit mounted behind the passenger-side wing. Replacing the OEM intercooler with a much larger, front mounted item means that much more cooling is on offer for the hot air trying to enter the engine. The cooler the air, the more power you will have on tap.
Features:
Tube & Fin intercooler (600x300x76mm core)
3″ inlet and outlet
TIG welded
Polished aluminium pipework
All necessary clamps and hoses included
1050cfm @ 0.5psi drop
Fitment
Nissan 200sx S14, S14a & S15 Silvia with SR20DET engine
| Clamps |
2 x 79 – 87mm / 5 x 73 – 81mm / 3 x 67 – 75mm |
|---|---|
| Core Depth (mm) |
300 |
| Core Length (mm) |
600 |
| Core Width (mm) |
75 |
| Fittings |
3 x Brackets |
| Inlet Bore (mm) |
75 |
| Outlet Bore (mm) |
75 |
| Overall Depth (mm) |
320 |
| Overall Length (mm) |
780 |
| Overall Width (mm) |
75 |
| Pipe Bore 1 |
63mm |
| Pipe Bore 2 |
70mm + 32 + 16mm + 6mm |
| Pipe Bore 3 |
68mm |
| Pipe Bore 4 |
64 – 52mm |
| Silicone 1 |
2 x 70mm Straight |
| Silicone 2 |
1 x 63mm Straight |
| Silicone 3 |
1 x 63-76mm reducer |
| Silicone 4 |
1 x 70-76mm reducer |
