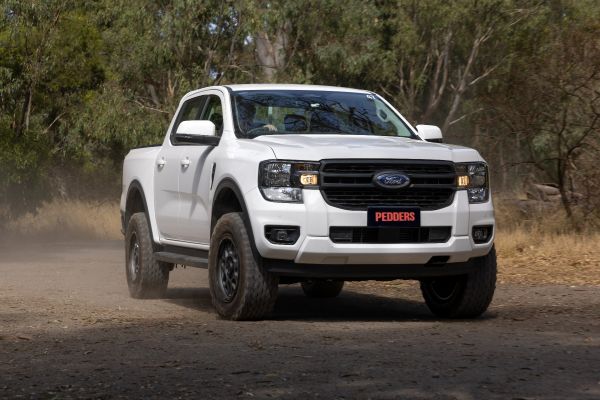

Pedders 2 Inch Heavy Duty Load Carrying & Towing Kit for Ford Ranger (2023+) 3.0 V6 Models

Improved load carrying and towing ability and ground clearance.Do you use your Ranger for load carrying and/or towing?

Then Pedders Suspension have the solution for you.

This kit features our excellent Pedders TrakRyder Foam Cell shocks, front coil springs, new rear leaf springs as well as the necessary bushes and U bolts to install them.

This kit is our first level heavy duty kit and is designed primarily to raise the vehicle and improve its load carrying and towing ability. If your Ranger currently sits low at the rear when towing or load carrying, then this kit offer a significant improvement compared to the standard vehicle.

This kit improves the load carrying ability compared to the standard Ford Ranger rear spring. It does, however, require a constant load of 300kg to retain good ride comfort. Dont forget to include your canopy and tow bar, for example, as part of the 300kg constant load.

This kit will raise the vehicle by approx. 50mm (see actual dimensions below) allowing better ground clearance and improved looks. Can be used to accommodate larger tyres. The dimensions quoted assume a standard vehicle. If you have additional equipment on board at the front such as a winch or bull bar, this will affect the final installed height. If this is the case, please contact us as it may be necessary to supply different springs for your application.

For those using the vehicle more heavily laden, please consider our Extra Heavy Duty Kit, 803530.

These components replace the original items. No other modifications to the vehicle are necessary. After fitting we strongly recommend a wheel alignment is carried out for optimum performance of your vehicle.

Still not sure this is the correct kit for you? Have further questions? Then please do get in touch with one of our team here at Pedders who will be able to assist you.

Key features

• 2 Inch Lift Kit
• Improved load carrying and towing
• Increased Off-Road Ground Clearance
• Sintered Iron Piston Shocks with Large 40mm Bore
• Premium Grade Steel Coils
• All backed by our 2 year / 40,000km warranty

Vehicle Height Information

Front: 615mm hub centre to wheelarch
Rear: Approx. 50mm higher than standard.
Notes: Heights should be measured as shown in the secondary picture.

NOTE. Wildtrack X and Tremor models feature raised suspension as standard. Fitment of this kit will result in a lift of circa 20mm

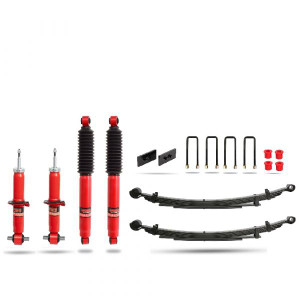

Contents of Kit 803529 (Pedders Part Numbers)

154407 x 2 - Pedders Foam Cell Shock, Front
290407 x 2 - Pedders Coil Spring
265096 x 2 - Pedders Heavy Duty Rear Spring
151407 x 2 - Pedders Foam Cell Rear Shock
EP8415 x 1- Pedders Urethane Lower Shackle Bushes
434008 x 4 - Pedders U bolt
75-0006 x 1 - Leaf spring adaptor kit
